Power Applied
The meter accepts a wide 8–28 V AC or DC input from the host equipment.
OEM Equipment Runtime Monitoring
Industrial Hour Meter
Accurate accumulated operating-time indication for industrial equipment.
Designed for integration into OEM machines and control systems, the hour meter begins accumulating runtime whenever equipment power is present. Elapsed time is updated and stored every minute for dependable maintenance and service tracking.
8–28 V AC/DCWide-range equipment power input.
1 MinuteDisplay and accumulation resolution.
9,999 h 59 minMaximum accumulated count.
OEM Supply OnlyFor integration into manufactured equipment.
Display & Control Board8–28 VAC or DC input
1 minuteCount resolution
9,999:59Maximum hour count
Battery backedTime viewing while powered off
Automatic Runtime Accumulation
Power the machine. The meter starts counting.
No separate run command is required. Applying equipment power starts time accumulation, making the module suitable for tracking actual powered operating hours in OEM machinery.
Time Accumulates
Runtime begins automatically whenever the product is powered.
Count Stored
The accumulated value is updated and retained at every completed minute.
View When Off
A push button enables the stored operating time to be viewed using battery backup when equipment power is unavailable.
Product Construction
Two-board architecture for straightforward OEM integration.

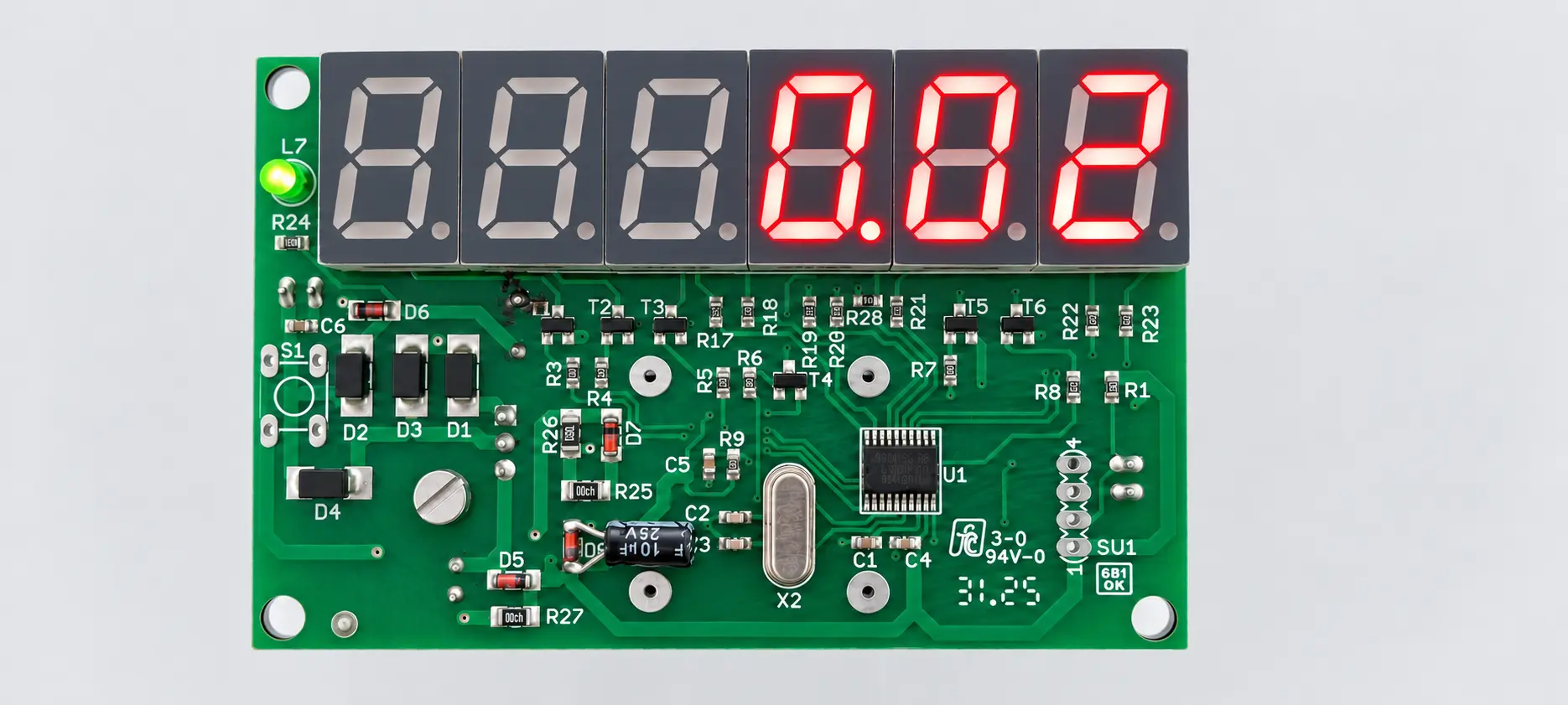

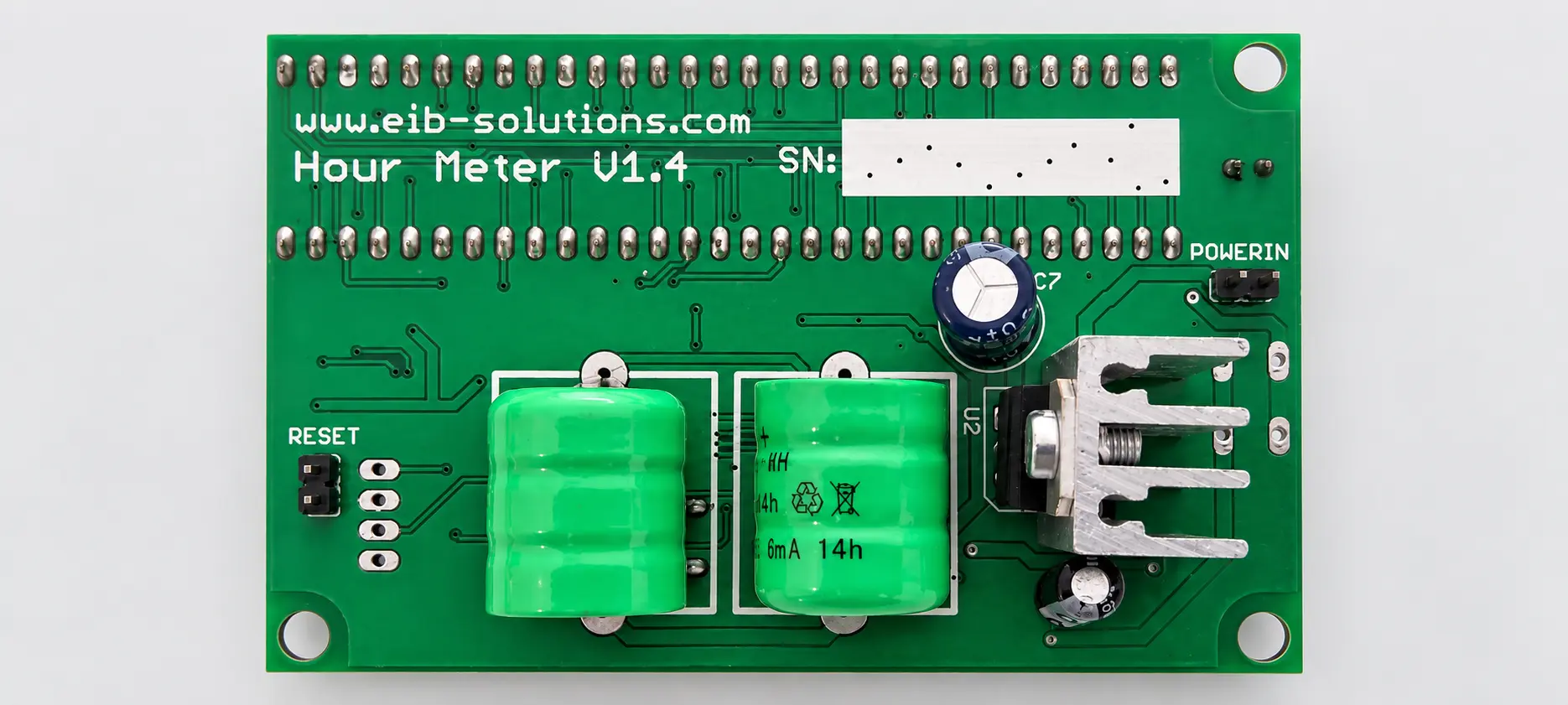

The display and control board provides a clear elapsed-time indication, while the power board supports the wide-range input and retained-time viewing function.
OEM Applications
Built into equipment where operating hours matter.
The meter gives machine builders a simple embedded basis for preventive maintenance, service intervals, warranty assessment and equipment-utilisation records.
Industrial Machinery
Track cumulative powered time for production and process equipment.
Pumps & Compressors
Support service scheduling based on actual accumulated running hours.
Generators & Power Equipment
Provide clear lifetime-hour indication within an OEM control panel.
Construction Equipment
Record equipment usage for maintenance and ownership records.
Material-Handling Systems
Monitor powered hours for conveyors and associated machinery.
Custom OEM Products
Integrate the hour-meter electronics into purpose-built equipment and enclosures.
Technical Specifications
Simple, persistent equipment-hour tracking.
This product is supplied for OEM integration rather than retail sale. Electrical, mechanical and branding adaptations can be discussed for suitable production requirements.
- Product type
- Industrial cumulative hour meter
- Supply input
- 8–28 V AC/DC
- Counting trigger
- Power ON
- Resolution
- 1 minute
- Maximum count
- 9,999 hours 59 minutes
- Data update
- Stored every minute
- Power-off viewing
- Push-button activation
- Backup
- Battery-backed display viewing
- Display
- Six-digit LED indication
- Availability
- OEM supply only; not for retail sale
OEM Integration
Designed to become part of your equipment.
Share your annual quantity, mounting arrangement, display-window requirements, connection method and branding needs. EIB Solutions can evaluate integration and white-labelling requirements for production programmes.
Discuss Your Application →
