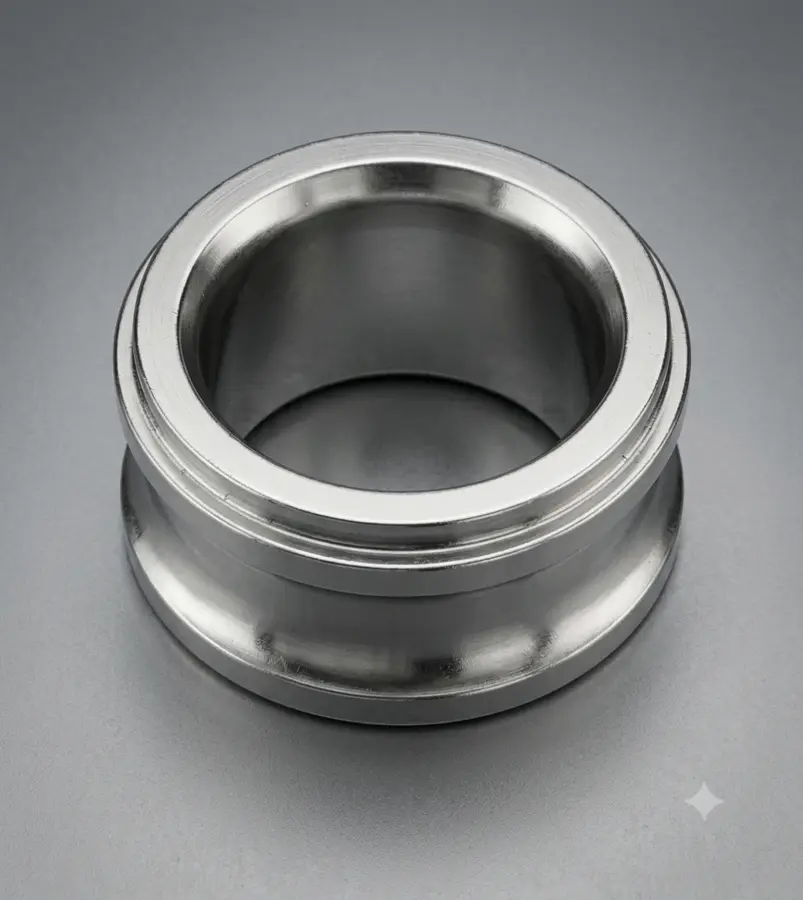

Inspect races, rings, rollers and other electrically conductive production parts.
Industrial NDT Product
EIB ECT System 2506
Configurable Eddy-Current Inspection for Production Machines
A modular 1, 2, 4 or 6-channel inspection subsystem developed for SPM manufacturers, automation integrators and production plants. It combines frequency-tunable acquisition electronics, Windows-based inspection software, probes and machine I/O in one rack-mount platform.
1–6 Independent ChannelsPopulate the same chassis to suit the inspection task.
1–1000 kHz ExcitationAdjustable frequency and gain for conductive materials.
Production I/OThree inputs and two outputs available per channel.
Integrated Operator SoftwareLive traces, recipes, counters, status and reporting.
1 / 2 / 4 / 6Channel Configurations
1–1000 kHzExcitation Frequency
1–30 sMeasurement Length
0–50 °COperating Range
Inspection Capability
Production NDT configured around the part and defect.
The probe is energised by a controlled AC signal. Surface or near-surface discontinuities disturb the induced eddy currents, changing the measured response. The software evaluates that response against configured inspection windows and generates a repeatable GO / NO GO decision.
Surface & Near-Surface Flaws
Detect cracks, pits, laps and material discontinuities after application trials.
Process & Material Comparison
Compare heat-treatment condition, conductivity, permeability or component variants using validated signatures.
Automatic Sorting
Provide the machine PLC with a result for part handling, acceptance or rejection.
EIB ECT App
Six live channel panes. One production interface.

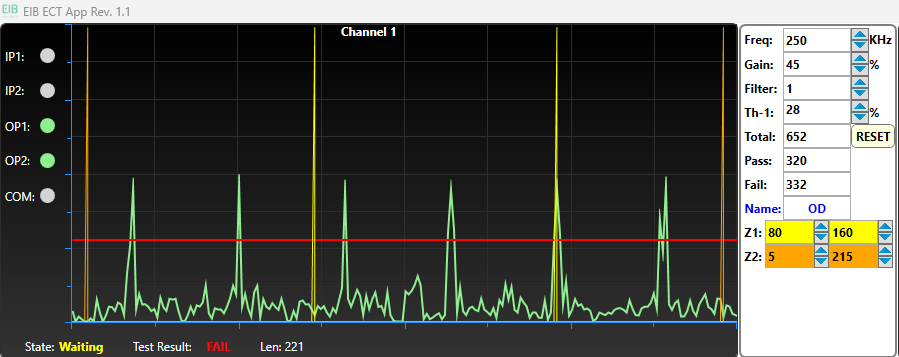

The supplied Windows application brings setup, monitoring and production records together. Each enabled channel presents its own waveform, communication state, I/O indicators, parameters and latest result.
Live Signal Evaluation
View the acquired trace, measurement state, sample length and immediate PASS or FAIL result.
Recipe Parameters
Configure excitation frequency, gain, digital filter, threshold and Z1/Z2 inspection windows for each channel.
Protected Setup
Password-controlled parameter access helps prevent unintended changes during production.
Production Information
Monitor total, pass and fail counters, board communication status and export production reports.
System Specification
A scalable controller for machine builders.
Every project is configured after reviewing component geometry, material, defect samples, inspection positions and cycle-time requirements.
- Channel Configurations
- 1, 2, 4 or 6 channels in the same chassis
- Excitation Frequency
- 1 kHz to 1000 kHz
- Gain Control
- 1% to 100%
- Measurement Length
- 1 to 30 seconds
- Digital I/O per Channel
- 3 inputs and 2 outputs
- Production Trigger
- IP1 rising edge; acquisition remains active while asserted
- Result Output
- OP1 GO / NO GO output; logic inversion available in software
- Power Supply
- 230 VAC, 50 Hz, single phase
- Chassis
- 19-inch rack format, 4U high, approximately 482.6 × 302.6 × 177 mm
- Operating Environment
- 0 °C to +50 °C; up to 85% RH, non-condensing
OEM & SPM Integration
Delivered as an inspection subsystem—not just an instrument.
EIB Solutions works with the machine builder on probe access, part presentation, electrical interface and the inspection sequence so the NDT function becomes part of the production machine.

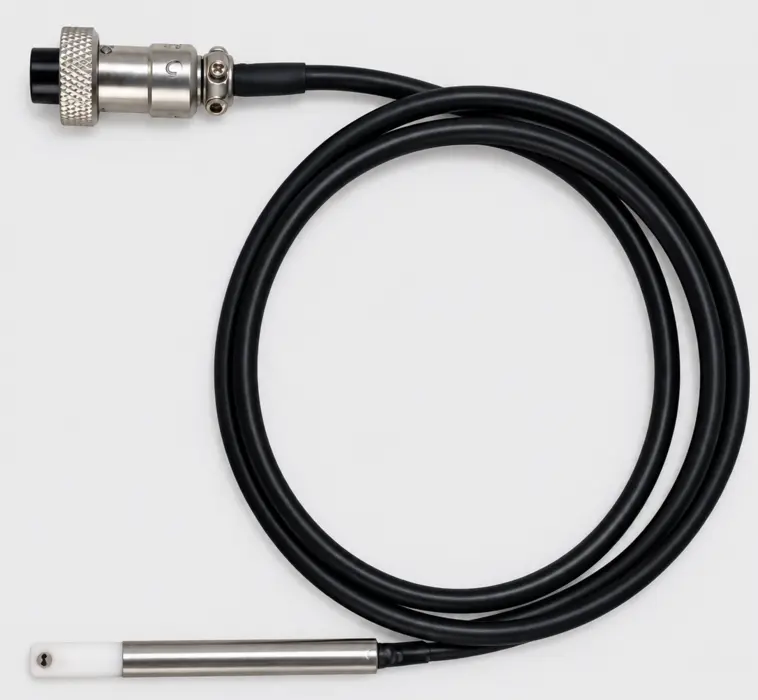

Straight Probes

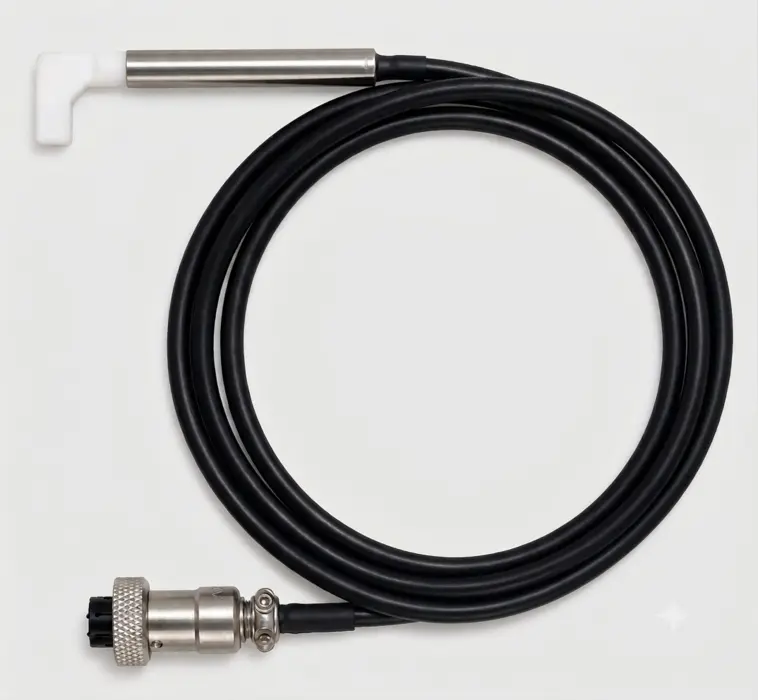

Angled Probes

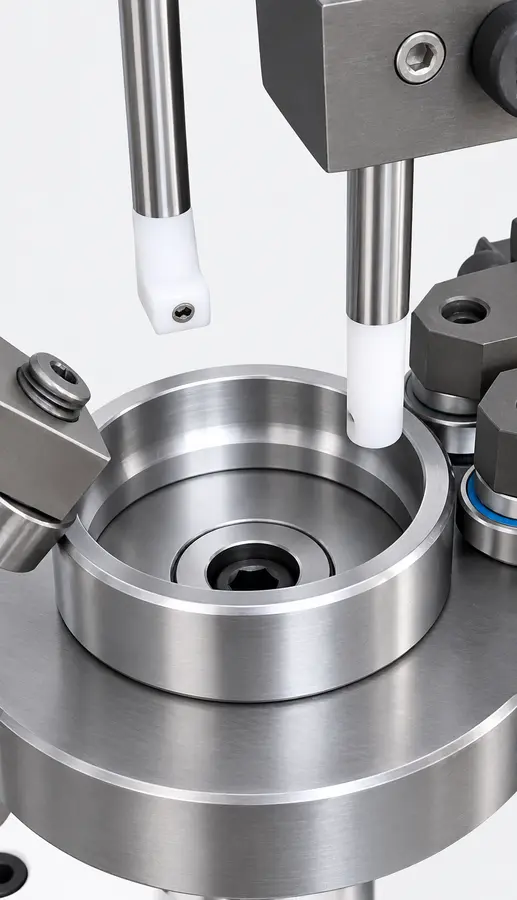

Custom FixturesIntegration Scope
From feasibility trial to production handover.
- Probe and frequency selection using representative samples
- Stable probe stand-off, part location and mechanical clearance
- PLC trigger, calibration and result-handshake definition
- Special-purpose fixture and machine mechanical design support
- Recipe setup, acceptance trials and operator training
Discuss an eddy-current application.
Send component drawings, material details, defect samples, acceptance criteria, cycle time and the planned machine sequence.
